Current location: > > Plastic Recycling Equipment

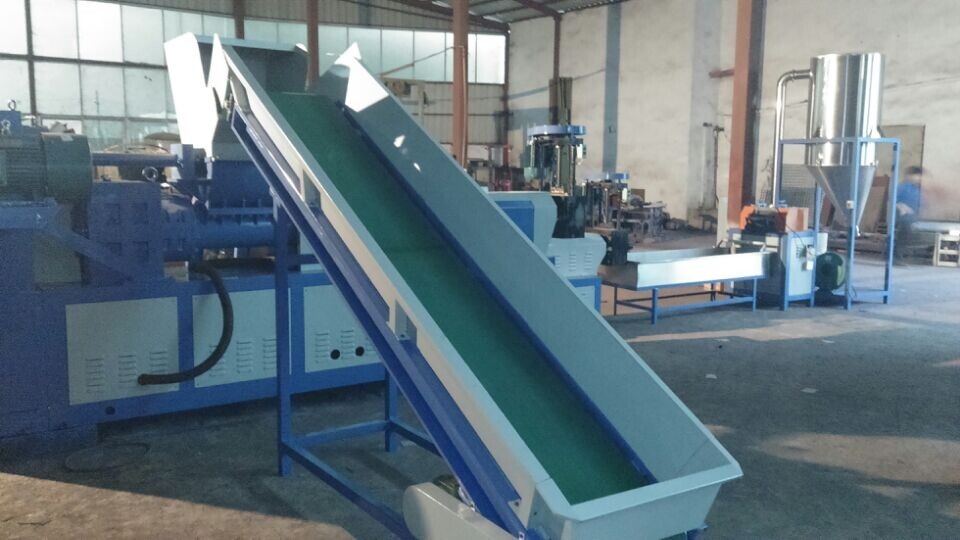

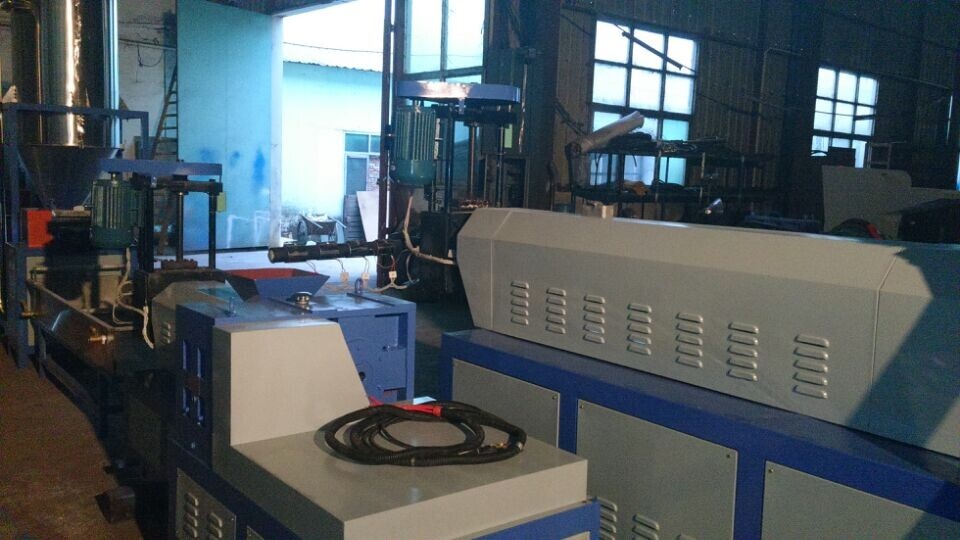

Two Steps Plastic Recycler
  • Two Steps Plastic Recycler
  • Two Steps Plastic Recycler

Two Steps Plastic Recycler

Product introduction

Feature:
This production line can optional auto feeding,auto crushing type or hand feeding type.it is used in plastic rim  and waste material recycle & granule making .this making line included two extruders,which make the granule more seed,smooth,pureness.the screen exchange can choose hydraulic lifting & descending or power-driven ries & fall.which can finish screen exchange no stop machine,enhance productivity greatly.it is suitable to LDPE,HDPE,LLDPE,PP,ABS,EPE,EPS,EVA recycle & granule making.

Main Parameters:


Model RFD125/90 RFD140/110 RFD150/120 RFD160/140
the first extruder
Screw Dia(mm) Φ125 φ140 Φ150 Φ160
Screw Length(mm) 2300 2600 2800 2900
Exhaust Type single exhaust single exhaust single exhaust single exhaust
Driving Power(kw) 30 37 45 55
Barrel Heating Power(kw) 16 18 25 30
Barrel Heating Zones 4 4 5 5
the second extruder
Screw Dia(mm) Φ90 φ110 φ120 φ140
Screw Length(mm) 1000 1100 1200 1400
Exhaust Type Single exhaust Single exhaust Single exhaust Single exhaust
Driving Power (kw)
7.5 11 15 18.5
Barrel Heating Power (kw) 12 15 18 24
Barrel Heating Zones 3 3 3 4
Granulator (7knifes)granulator/roller type(21knifes)granulator,inverter for speed regulation.
Control Cabinet electricity box
Water Trunk Stainless steel
Screen Exchange motor-driven/hydraulic pressure
